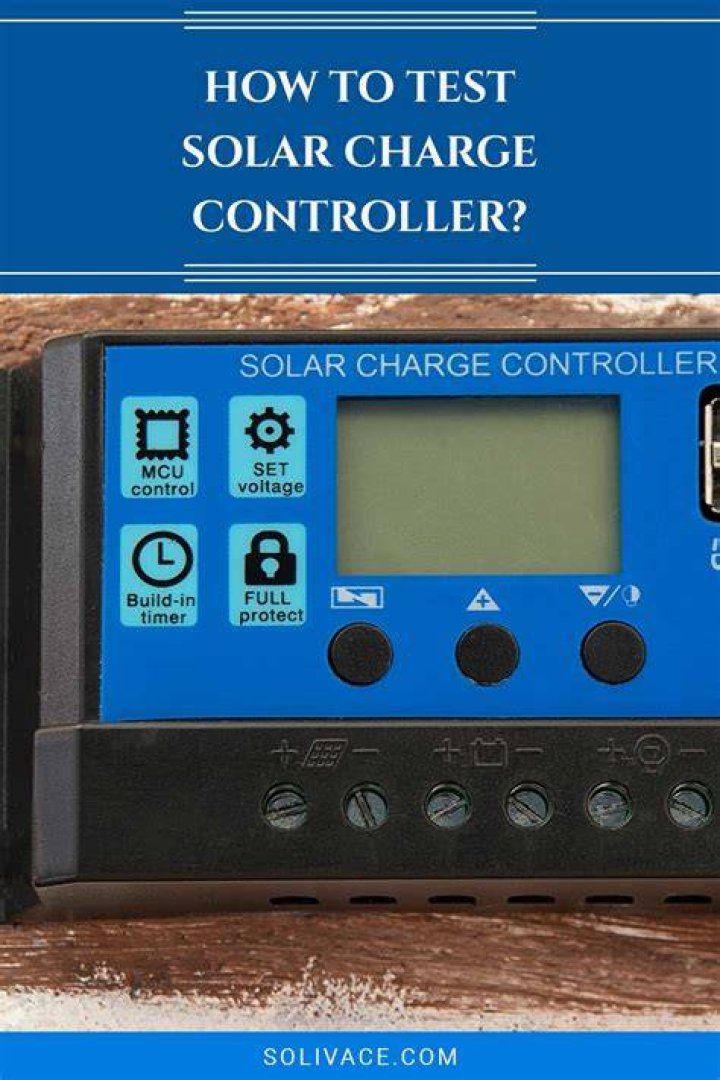

How do you test a solar charge controller?

OPERATING CURRENTDisconnect the positive cable between the battery and the charge controller. Measure the current by connecting the positive test lead from the multimeter to the positive cable from the controller and the negative test lead from the multimeter to the positive battery terminal.

Similarly one may ask, how do I know if my solar panel is working?

A simple health check is to look at the colour of the lights shining on the box during daylight hours when the system's meant to be running. A green light on your inverter means your system is functioning properly. A red or orange light during daylight hours means there's a system event or fault.

Subsequently, question is, do solar panel inverters need servicing? Most solar panel systems are fine with basic checks and cleaning 1-2 times a year. The solar panels themselves require little to no maintenance. However, the other parts of the system, such as the inverter and the cables connecting the panels to the inverter, may require some upkeep to ensure maximum efficiency.

Moreover, what causes solar panels to fail?

According to NREL, modules can fail because of unavoidable elements like thermal cycling, damp heat, humidity freeze and UV exposure. Thermal cycling can cause solder bond failures and cracks in solar cells. Humidity freezing can cause junction box adhesion to fail.

What happens if a solar panel is not connected to anything?

If no load is connected,the electric circuit is incomplete/open. Thus there is no trasfer of electrons through the circuit thus no diffusion of charges inside the PV is As no current is produced in the external circuit is seen. Thus aspower is V*I,thus no power is produced in the circuit.

How many solar panels does it take to charge a 12 volt battery?

For a 12V system, if you need to replace 100A/h of charge to your batteries each day, and you have 8 sunlight hours in each day you will need 1200WH / 8H = 150W of solar panels. In reality it is recommended that you always overrate your requirements by at least 20%, therefore you would need 180W of solar panels.

What size solar panel do I need to charge a 12v battery?

12v battery solar charger panel typically put out about 13.6V to 17.0 volts use to charge 12v battery or to run any 12v devices.
A Standard Solar Panel Size is 65 inches by 39 inches typically used to charge 100 watt 12V battery.

How often do you have to clean your solar panels?

At the very least you should do an annual cleaning of your panels. You can include a solar panel cleaning as part of your spring cleaning routine. Most manufacturers recommend cleaning at least twice a year. This tends to result in a 3 to 5% increase in efficiency.

How much will a 100 watt solar panel run?

When a 12V solar panel is rated at 100W, that is an instantaneous rating, if all of the test conditions are met, when you measure the output, the voltage will be about 18 volts and the current will be 5.55 amps. Since watts equals volts times amps, 18 volts x 5.55 amps = 100 watts.

Can I connect solar panel directly to battery?

Connecting the solar panels directly to a bank of batteries may work, but is not a good idea. A standard 12 volt solar panel which can be used to recharge a battery, could actually be putting out nearly 20 volts at full sun, much more voltage than the battery needs.

How long does it take a 100w solar panel to charge a battery?

After a full week, the battery will be just about fully charged. Using this example, you can see that it will take at least 100 watts of solar power to recharge a 100-amp hour battery in a few days.

How do you match a solar panel to a battery?

A rule of thumb is to choose a panel with roughly the same number of watts as the battery has amp hours. Return to the battery article for a refresher on amp hours if you need it -- but a 55-aH battery like the Optima we used can comfortably pair with a 55-watt, or slightly higher output panel.

Can a solar panel charge a deep cycle battery?

Solar panels are commonly used to charge a battery – not to charge a device directly. This rating is usually found on deep cycle batteries. If a battery is rated at 100 amp hours it should deliver 5 amps of power for 20 hours or 20 amps of power for 5 hours.

How do you charge a solar panel without sunlight?

Place the solar panels directly underneath a household light to charge them as quickly as possible without sunlight. Place your solar lights as close to the light bulb as possible. The further away it is from an incandescent light bulb, the longer it will take your solar panel to charge.

Why is my solar panel not charging my battery?

If your battery connected with the solar system but doesn't charge properly, the problem is likely to be a battery problem, a wrong system connection, or a problem with the solar charge controller settings. The charging controller does not work because of the battery low voltage and outputs protection.

What does PV mean on a solar controller?

Solar Panels (PV) and Voltages. Unlock the mysteries behind the jargon and acronyms of voltage! written by James Cormican. For folks that are new to photovoltaics (PV or Solar Panels), unlocking the mysteries behind the jargon and acronyms is one of the most difficult early tasks.

Why do I need a load connection on a charge controller?

Re: Purpose of "Load" ConnectionIt is for a travel trailer, which has a single unit that combines a 1000W inverter and a 50 Amp charge controller, which will either supply AC power from the batteries, or will charge the batteries when the trailer is connected to shore power.

How do you test a charge controller?

Measure the current by connecting the positive test lead from the multimeter to the positive cable from the controller and the negative test lead from the multimeter to the positive battery terminal. This measures the current that the panel and charge controller are passing to the battery.

How does a solar charge controller work?

What is a Solar Charge Controller? A charge controller or charge regulator is basically a voltage and/or current regulator to keep batteries from overcharging. It regulates the voltage and current coming from the solar panels going to the battery. Most batteries need around 14 to 14.5 volts to get fully charged.

How does a solar regulator work?

A solar regulator is a small box consisting of solid state circuitry that is placed between a solar panel and a battery. Its function is to regulate the amount of charge coming from the panel that flows into the deep cycle battery bank in order to avoid the batteries being overcharged.
